BAUPOX 200
Thin-Layer Resin Flooring SYSTEM
System Specifications
BAUPOX TL System is a thin-layer, cost-effective epoxy flooring solution – sometimes referred to as resin paint – designed for light to medium-duty loads. Ideal for industrial and public facilities with vehicular traffic and periodic pedestrian flow. It creates a durable, seamless, and easy-to-clean surface resistant to impact, pressure, and loading shocks. Due to its thin-layer profile, it directly follows the concrete texture, making substrate quality crucial for the final aesthetic outcome.
The BAUPOX 200 version is a classic two-step system where each layer serves a strictly defined structural purpose and is formulated using dedicated products. Engineered for projects with the highest technical requirements and more challenging substrate conditions, including elevated moisture levels.
Applications:
- technical rooms
- storage rooms
- staircases
- pedestrian areas
- warehouses
Technical Data:
- System thickness: ~0.5 mm
- Impact resistance: IR 10 Nm
- BCA abrasion resistance: AR 0.5
- Slip resistance: < R9
- Mechanical properties:
- Pull-off strength: >2 N/mm² (B2.0)
- Flexural strength: >20 MPa (F20)
- Compressive strength: >40 MPa (C40)
!
Strengthening Weak Concrete (Optional)
Recommended for weak, friable, or highly absorbent substrates before applying the primer layer.
Epoxy Resin BAUPOX 100 GP™
A deep-penetrating, low-viscosity epoxy-based primer designed to: reinforce weak concrete substrates, seal concrete screeds, equalize substrate absorbency, act as a dust binder for floors.
Using BAUPOX 100 GP significantly reduces concrete absorbency, lowering primer resin consumption in the next step. Two-component. Solvent-based. PZH certified.
Coverage: 0.3-0.5 kg/m²

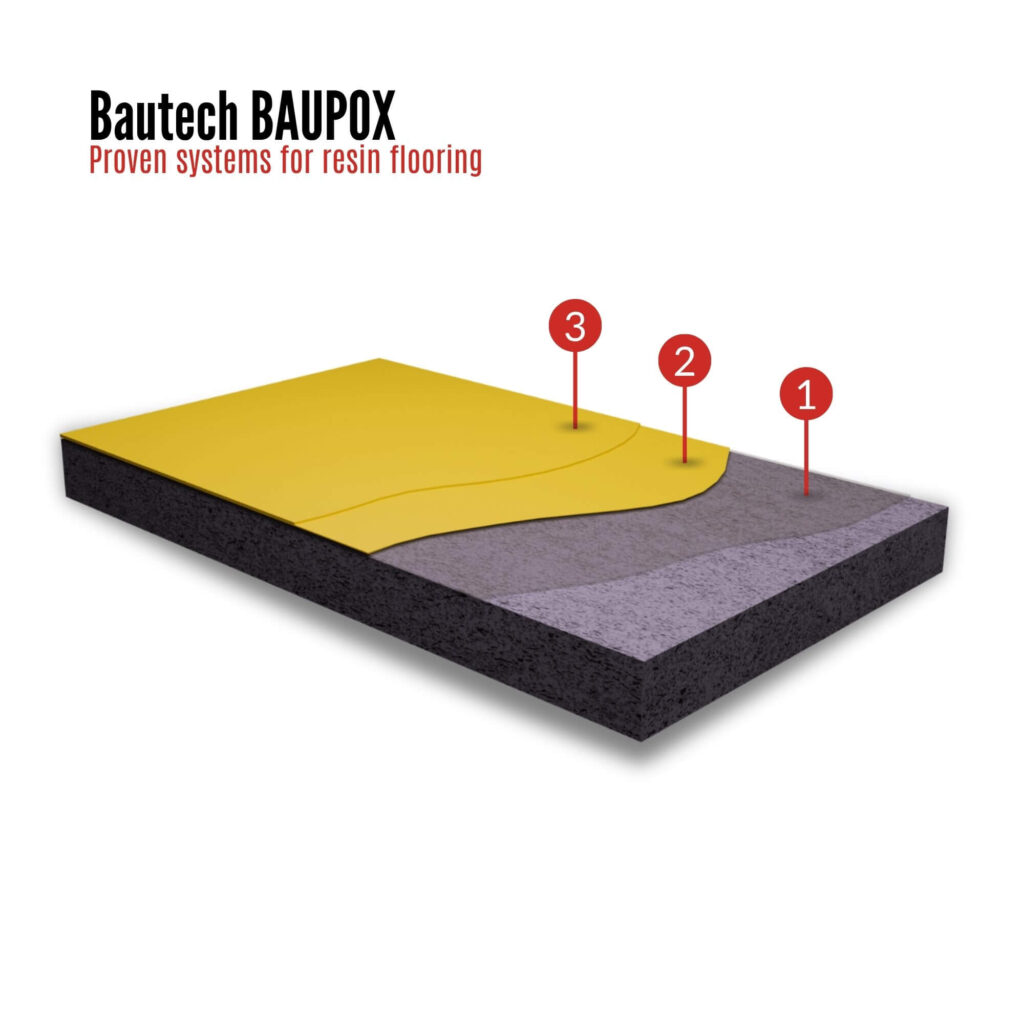

1
Primer Layer
Primer selection should take into account the moisture content of the substrate.
Epoxy Resin BAUPOX 100 ST™
Suitable for concrete with moisture content up to 8%. Creates a strong and durable bond between concrete and resin. Designed for decorative and industrial systems. Also used for fast repair of cracks and voids in concrete screeds.
Two-component. Solvent-based. PZH certified.
Coverage: 0.25-0.5 kg/m²
Note: For weak, highly absorbent, or friable substrates, it is recommended to pre-saturate with deep-penetrating epoxy BAUPOX 100 GP before using BAUPOX 100 ST.
Epoxy Resin BAUPOX 100 STX™
Filler-modified epoxy primer (paste-like consistency) for concrete with moisture up to 6%.
Creates a strong bond layer. Used in decorative and industrial systems and for fast crack repair.
Two-component. Solvent-based. PZH certified.
Coverage: 0.25-0.5 kg/m²
Note: For weak, friable, and highly absorbent substrates, pre-saturation with BAUPOX 100 GP is recommended.
2
Main Coat
Epoxy Resin BAUPOX 200™
Pigmented, solvent-free, water-free epoxy resin for creating colored resin flooring. Offers high durability, aesthetic finish, and is available in a wide range of standard and custom colors.
Ideal for finishing layers in industrial and parking systems based on natural quartz aggregate.
Coverage: 0.25-0.3 kg/m²
3
Topcoat
Colored epoxy paint for concrete
Contact our Investment Consultant today. We will help you select the optimal colored epoxy resin paint for concrete, perfectly tailored to the environmental conditions of your project. We guarantee the high quality of industrial floors made with BAUTECH BAUPOX resins. As a direct manufacturer of high-spec, chemically resistant epoxy resins, we have over 30 years of experience in engineering industrial flooring systems for all sectors. Work with an expert. Choose peace of mind and proven quality.
