Resin Floor
BAUPOX 200 TL SYSTEM
System Specifications
BAUPOX COLORID is a decorative flooring system based on epoxy resins and colored acrylic flakes, offering unlimited possibilities for visual arrangement.
It is resistant to light wheeled transport and pedestrian traffic. Its strengths include chemical resistance and remarkable decorative effects.
Applications:
- chemical plants
- pharmaceutical facilities
- commercial buildings
- office spaces
- showrooms
- pedestrian zones
- staircases
- storage areas
- technical rooms
- staff and utility rooms
Technical Data:
- System thickness: ≥1 mm
- Impact resistance: IR 10 Nm
- BCA abrasion resistance: AR 0.5
- Slip resistance: < R9
- Mechanical properties:
- Pull-off strength: >2 N/mm² (B2.0)
- Flexural strength: >20 MPa (F20)
- Compressive strength: >40 MPa (C40)
!
Strengthening Weak Concrete (Optional)
Recommended for weak, friable, or highly absorbent substrates before applying the primer layer.
Epoxy Resin BAUPOX 100 GP™
A deep-penetrating, low-viscosity epoxy-based primer designed to:
- reinforce weak concrete substrates
- seal concrete screeds
- equalize substrate absorbency
- act as a dust binder for floors
Using BAUPOX 100 GP significantly reduces concrete absorbency, lowering primer resin consumption in the next step.
Two-component. Solvent-based. PZH certified.
Consumption: 0.3-0.5 kg/m²

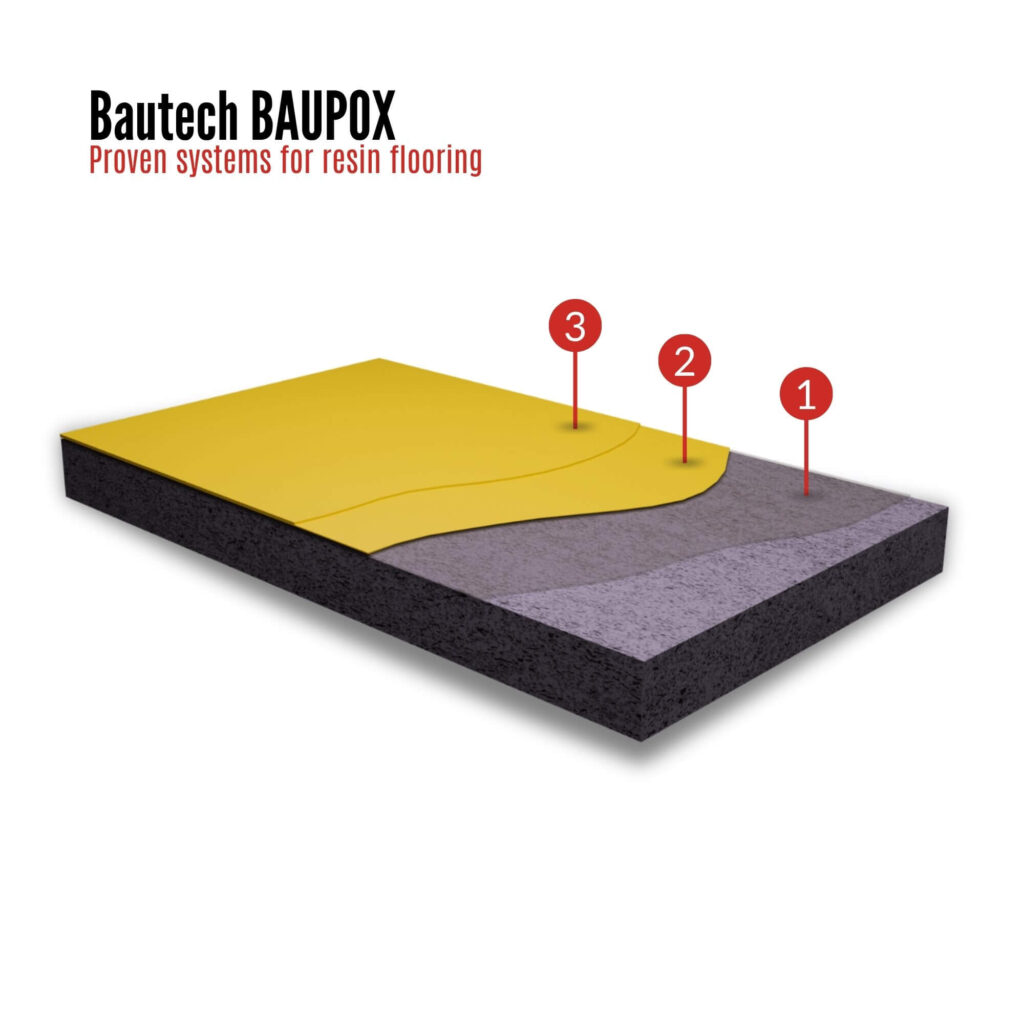

1
Primer Layer
Primer selection should take into account the moisture content of the substrate.
Epoxy Resin BAUPOX 100 ST™
Suitable for concrete with moisture content up to 8%. Creates a strong and durable bond between concrete and resin. Designed for decorative and industrial systems. Also used for fast repair of cracks and voids in concrete screeds.
Two-component. Solvent-based. PZH certified.
Consumption: 0.25-0.5 kg/m²
Note: For weak, highly absorbent, or friable substrates, it is recommended to pre-saturate with deep-penetrating epoxy BAUPOX 100 GP before using BAUPOX 100 ST.
Epoxy Resin BAUPOX 100 STX™
Filler-modified epoxy primer (paste-like consistency) for concrete with moisture up to 6%.
Creates a strong bond layer. Used in decorative and industrial systems and for fast crack repair.
Two-component. Solvent-based. PZH certified.
Consumption: 0.25-0.5 kg/m²
Note: For weak, friable, and highly absorbent substrates, pre-saturation with BAUPOX 100 GP is recommended.
2
Main Coat
Epoxy Resin BAUPOX 200™
Pigmented, solvent-free, water-free epoxy resin for creating colored resin flooring. Offers high durability, aesthetic finish, and is available in a wide range of standard and custom colors.
Ideal for finishing layers in industrial and parking systems based on natural quartz aggregate.
Consumption: 0.3-1.0 kg/m²
3
Topcoat
Epoxy Resin BAUPOX 200™
Same formula as the main coat. Recommended for finishing layers.
Pigmented, solvent-free, water-free epoxy resin for decorative resin flooring. High durability and aesthetic value, with broad color availability.
Ideal for topping layers in industrial and car park systems based on natural quartz aggregate.
Consumption: 0.3-1.0 kg/m²
