BAUPOX 100K
Thin-Layer Resin Flooring SYSTEM
System Description
BAUPOX TL System is the thinnest and most cost-effective resin flooring system in the BAUTECH range, commonly referred to as a resin paint. Designed for industrial and public facilities exposed to light to medium vehicular loads as well as periodic pedestrian traffic. It delivers resistance to impact, pressure, and loading shocks typical of light and medium goods handling, creating a seamless, easy-to-clean surface.
NOTE: It directly mirrors the texture of the underlying substrate. The smoother the substrate, the smoother the final finish.
The 100K version is a convenient 2-in-1 solution, where a single resin acts as both the primer and the colored main coat. The application of this version requires specific technical conditions, including a substrate moisture level of <4%.
Applications:
- technical rooms
- storage rooms
- staircases
- pedestrian areas
- warehouses
Technical Data:
- System thickness: ~0.5 mm
- Impact resistance: IR 10 Nm
- BCA abrasion resistance: AR 0.5
- Slip resistance: < R9
- Mechanical properties:
- Pull-off strength: >2 N/mm² (B2.0)
- Flexural strength: >20 MPa (F20)
- Compressive strength: >40 MPa (C40)
!
Strengthening Weak Concrete (Optional)
Recommended in case of weak, dusty, and highly absorbent substrates before applying the main primer layer.
Epoxy Resin BAUPOX 100 GP™
Deep-penetrating, low-viscosity epoxy primer used for: reinforcing weak, dusty concrete, sealing concrete screeds, evening out absorbency of concrete, dust-proofing floors.
Use of BAUPOX 100 GP significantly reduces substrate absorbency and thus limits the amount of primer needed in the next stage.
Two-component. Solvent-based. PZH certified.
Coverage: 0.3-0.5 kg/m²
1

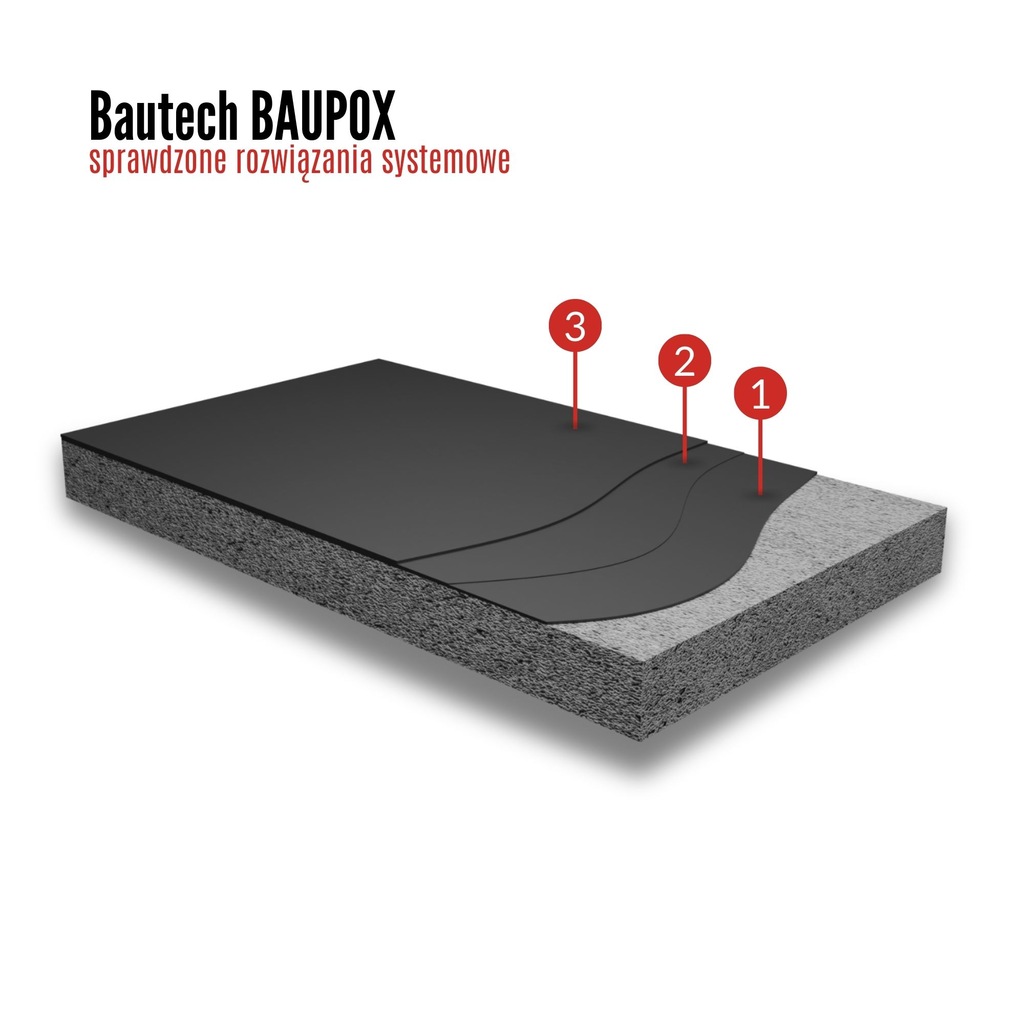

Primer Coat
Primer choice should be based on the moisture level of the concrete substrate.
Epoxy Resin BAUPOX 100 K™
Pigmented, solvent-free, water-free epoxy resin in a user-friendly and economical 2-in-1 formula that acts as both a primer layer (for concrete moisture <4%) and a topcoat due to its color pigmentation.
Widely used in underground parking garages and technical spaces in both commercial and private facilities. PZH certified.
Coverage: 0.25-0.5 kg/m²
2
Main Coat
Epoxy Resin BAUPOX 100 K™
Pigmented, solvent-free, water-free epoxy resin in a 2-in-1 formulation, serving as both primer and top layer (for moisture <4%).
PZH certified.
Coverage: 0.25-0.3 kg/m²
3
Topcoat
Epoxy Resin BAUPOX 100 K™
Pigmented, solvent-free, water-free epoxy resin in a 2-in-1 formulation, serving as both primer and top layer (for moisture <4%). PZH certified.
Coverage: 0.25-0.3 kg/m²
Colored epoxy paint for concrete
Contact our Investment Consultant today. We will help you select the optimal colored epoxy resin paint for concrete, perfectly tailored to the environmental conditions of your project. We guarantee the high quality of industrial floors made with BAUTECH BAUPOX resins. As a direct manufacturer of high-spec, chemically resistant epoxy resins, we have over 30 years of experience in engineering industrial flooring systems for all sectors. Work with an expert. Choose peace of mind and proven quality.
